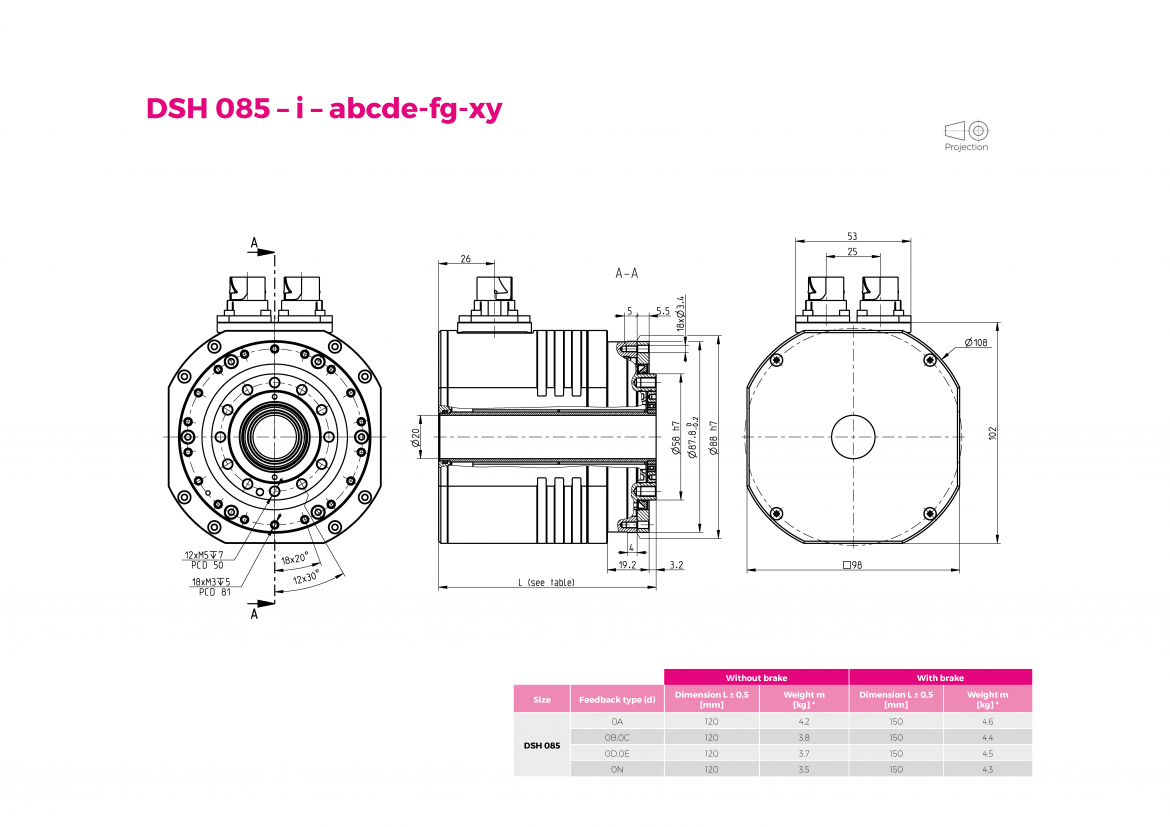

DSH 085

DSH 085

The DriveSpin® DSH electric actuators are characterized by the short axial length and by the possibility to use a through hole for routing cables, pipes, and drive shafts. Fully sealed compact actuators equipped with zero-backlash reduction gears have high power density, large hole inner diameter, from 8 to 40mm. Excellent positioning accuracy and positioning repeatability. DSH maintaining radial-axial and torque load capacity and are characteristic with high overload capacity of reduction gear and of AC servomotor, featuring high dynamics. The voltage and feedback variability will widely satisfy all of customers’ requirements. This allows even demanding tasks such as exact positioning or fast movement of heavy loads to be performed with a high degree of repetitive accuracy. Rated output torque is from 18 Nm to 260 Nm.

The Inline H-Series introduces the new DriveSpin®Hollowshaft "inline" series of rotary actuators. The high-precision DSH 085 actuators represent the medium-sized series representative of the DriveSpin®product line.


Parameter DSH 085
Reduction ratio i 47, 85
Hollowshaft diameter ø[mm] 14 alebo 20

Rated output torque

Tr [Nm] 41

Acceleration/braking output torque

Tmax [Nm] 82

Rated input speed

nr [rpm] 2000

* for more information see DriveSpin® catalog
