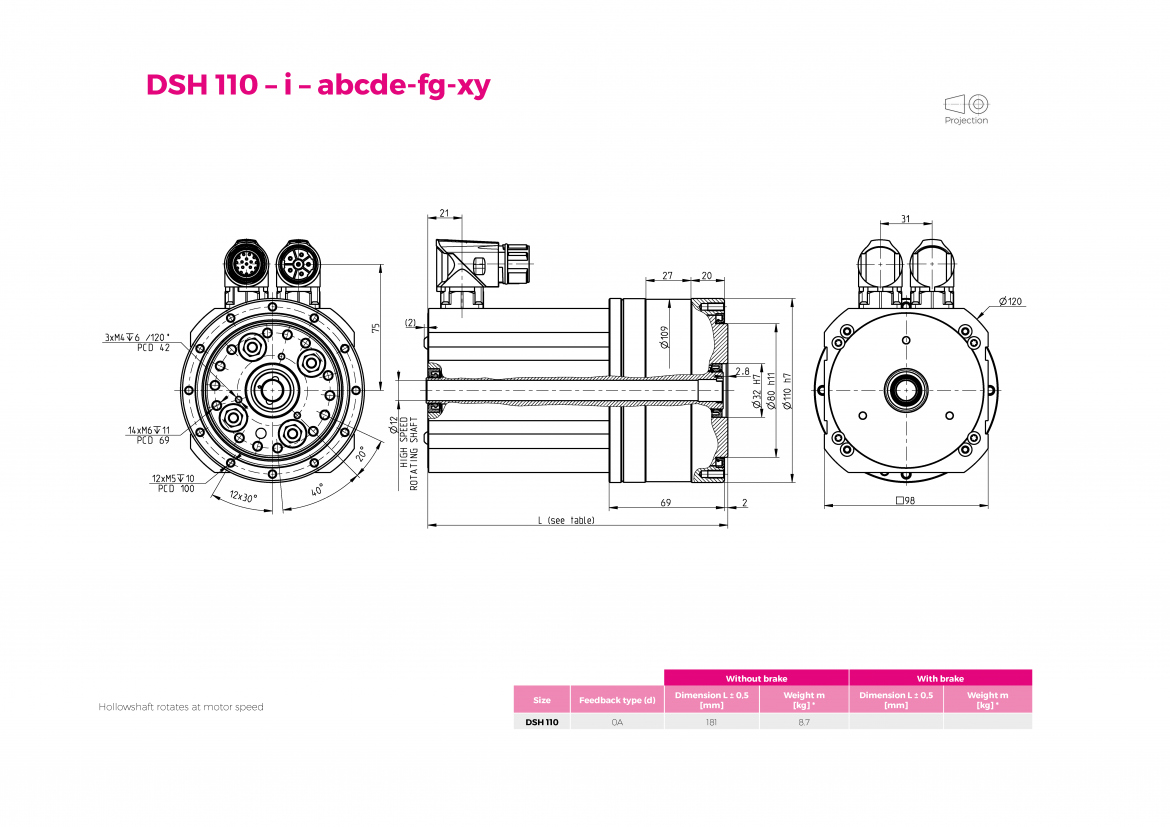

DSH 110

DSH 110

The DriveSpin® DSH electric actuators are characterized by the short axial length and by the possibility to use a through hole for routing cables, pipes, and drive shafts. Fully sealed compact actuators equipped with zero-backlash reduction gears have high power density and large hole inner diameter, from 8 to 40mm. Excellent positioning accuracy and positioning repeatability. DSH maintain radial-axial and torque load capacity and are known for high overload capacity of reduction gear and AC servomotor, featuring high dynamics. The voltage and feedback variability will widely satisfy all customers requirements. This allows even demanding tasks such as exact positioning or fast movement of heavy loads, to be performed with a high degree of repetitive accuracy. Rated output torque is within 18 Nm - 420 Nm.


The high-precision DSH 110 actuators are the medium-sized series drive of the DriveSpin® product line, meeting even the most demanding requirements of customers in all industries.


Parameter DSH 110
Reduction ratio i 67, 89, 119
Hollowshaft diameter ø[mm] 12

Rated output torque

Tr [Nm] 122

Acceleration/braking output torque

Tmax [Nm] 244

Rated input speed

nr [rpm] 2000

* for more information see DriveSpin® catalog
