DriveSpin®
DS 140

DriveSpin®
DS 140

The DriveSpin® DS electric rotary actuators, as the basic type of actuators, provide rotary motion and transfer output torque with high radial-axial load capacity, and are the most accurate and precise solution in their category. The DS actuators are characterized by high dynamics, high flexible drive solution, guaranteed by an AC servomotor, and high robustness and overload capacity of TwinSpin® reduction gear. DriveSpin® high variability of voltage, brake feedback and electrical connections will satisfly customer requirements in many cases. Rated output torque range of the DS is from 18 Nm to 460 Nm.

The high-precision DS 140 actuators represent a dimensionally large series representative of the DriveSpin® product line, meeting even the most demanding customer requirements from all areas of industry.

TECHNICAL PARAMETERS

Parameter DS 140
Reduction ratio i 69, 115

Rated output torque

Tr [Nm] 268

Acceleration/braking output torque

Tmax [Nm] 670

Rated input speed

nr [rpm] 2000

* for more information see DriveSpin® catalog

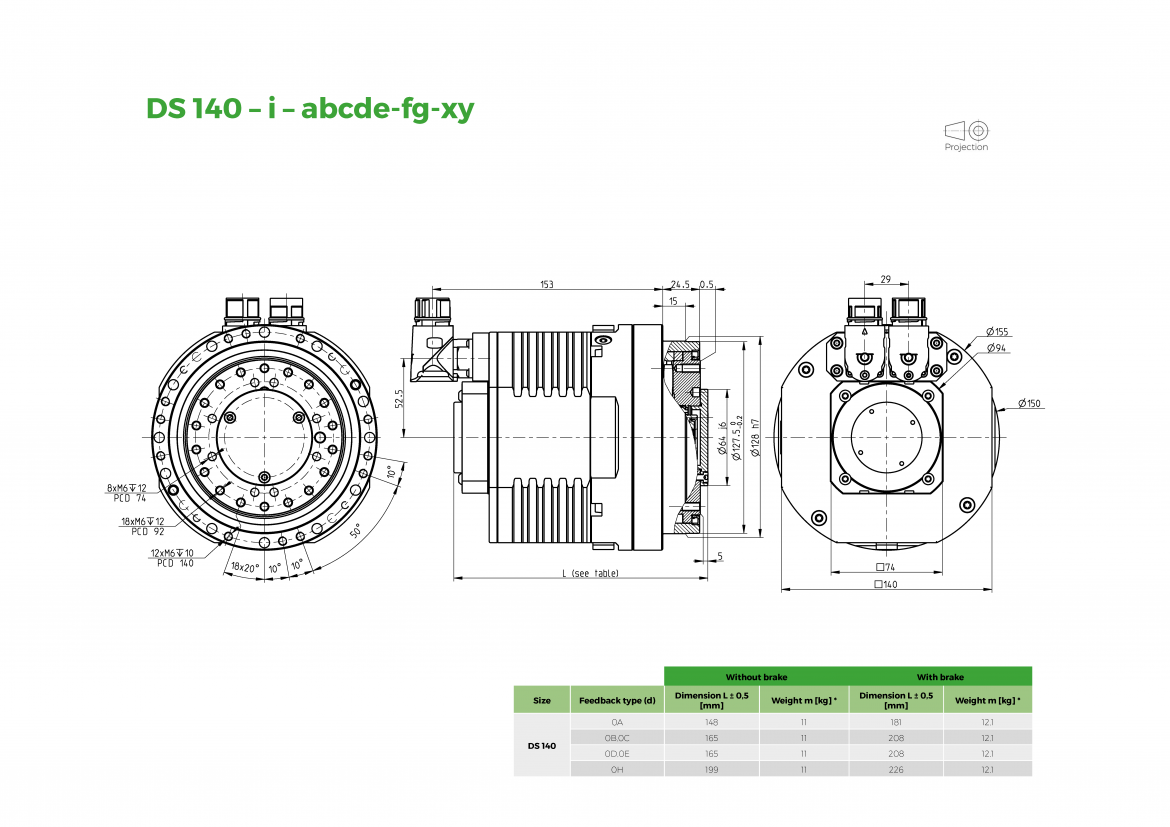

DRAWING
